The Slab Cart is a versatile topside-mount transport cart designed specifically to adapt to a wide variety of shapes and sizes. The interchangeable, modular design, along with its high load capacity makes the Slab Cart appealing for a wide variety of trades, especially for Slab Stone and Artisan Concrete fabricators that require careful handling and precision placement. There is no other transportation device on the market today with all of the capabilities of the Slab Cart!
List of Features:
–Over-The-Top Clamping System: Patent Pending and the single biggest innovation to slab handling and installation industry in the past 30 years! The unique support system provides a modular platform to adapt to any size/shape slab while allowing the ability to set directly in place a top cabinetry. TRULY A SYSTEM THE REQUIRES NO LIFTING!
– 1600lb Load Capacity: Designed and Engineered to safely carry the largest slabs currently available on the market today and the only installation cart with this carrying capacity. We built this for the BIG STUFF!
– Adjustable Cross-Bracing Support: Designed to clamp to any size/shape up to a full-size slab design. The adjustable length and placement design allows for strategic clamping at ANY point around the perimeter or sink opening of your slab.

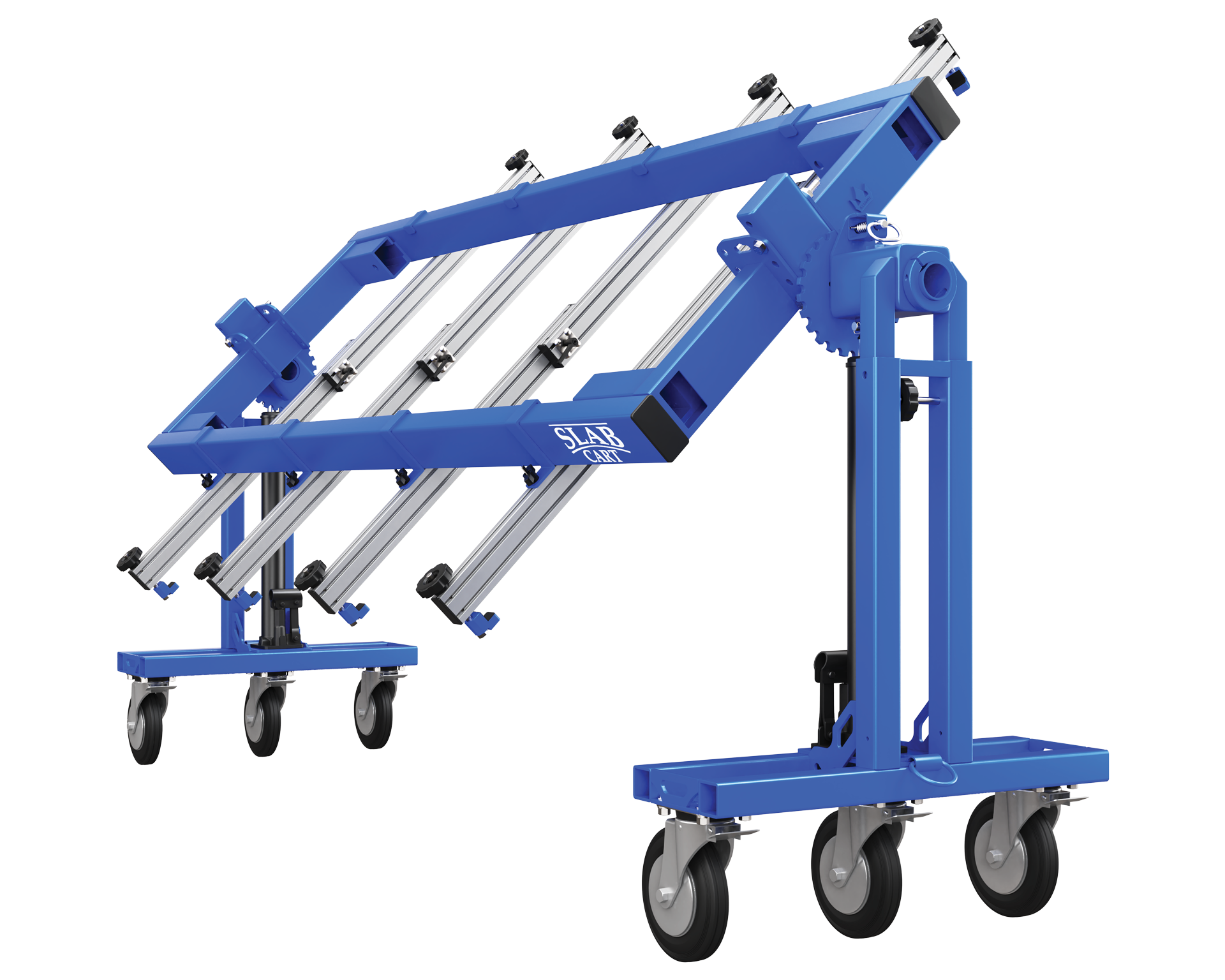

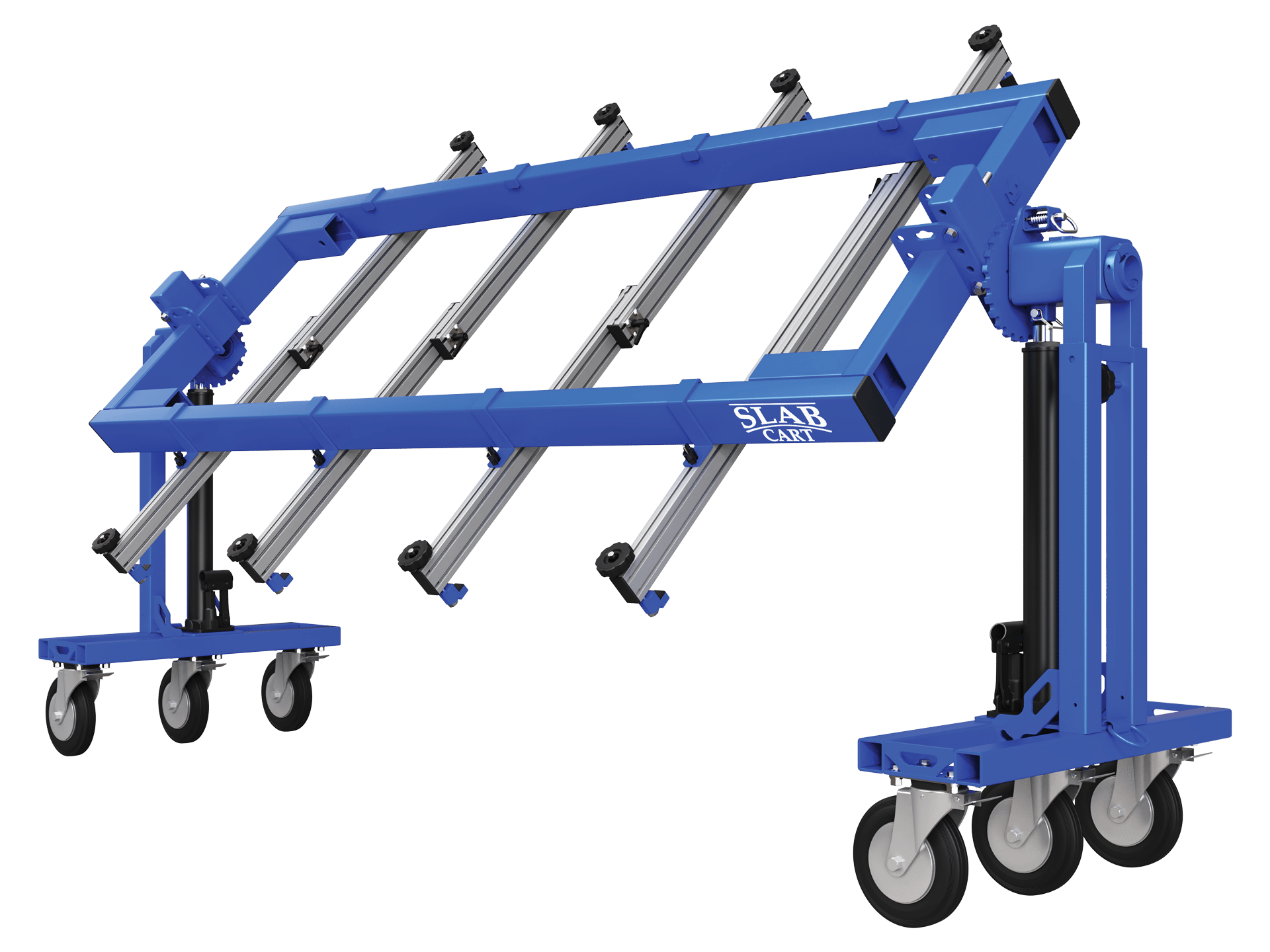

–Full 360° Locking Tilt: With a full clear span between the leg supports, you can rotate a full balanced slab effortlessly and lock in position during transport or adjust to navigate narrow passages and obstacles.
-Multifunctional Transport Device: Designed to replace the need for a transport rack or the need to move from one handling device to another. Our design allows uninterrupted handling from fab shop to install site. Locking Casters and built-in anchor points make this system easy to strap down within a box truck, van, or trailer.
– Dual Manual Hydraulic Lifts: Muscle with precision! Manual Hydraulic lifters located on each leg assembly allow crews to strategically navigate loads over and around obstacles, through doorways, up and down steps, all while having full control of your slab and allowing you to gently set directly in place atop cabinetry.

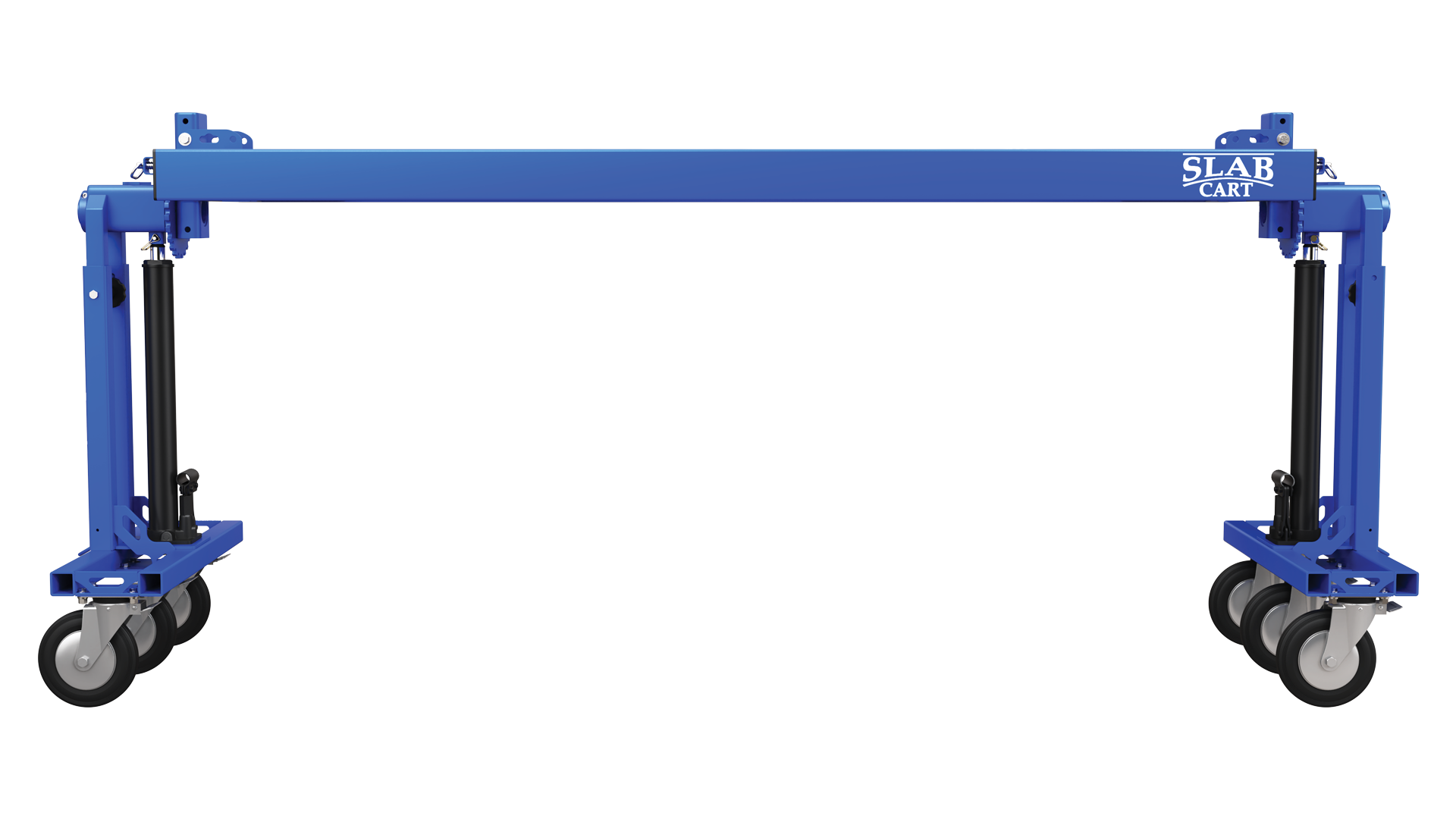

– Independent Wheel Systems: The rolling leg assemblies lift/lower independently from each other and can tilt separately of each other while carrying a balanced load. This means both leg systems can sit on different surfaces and inclines while all wheels maintain safe and stable contact with the floor.

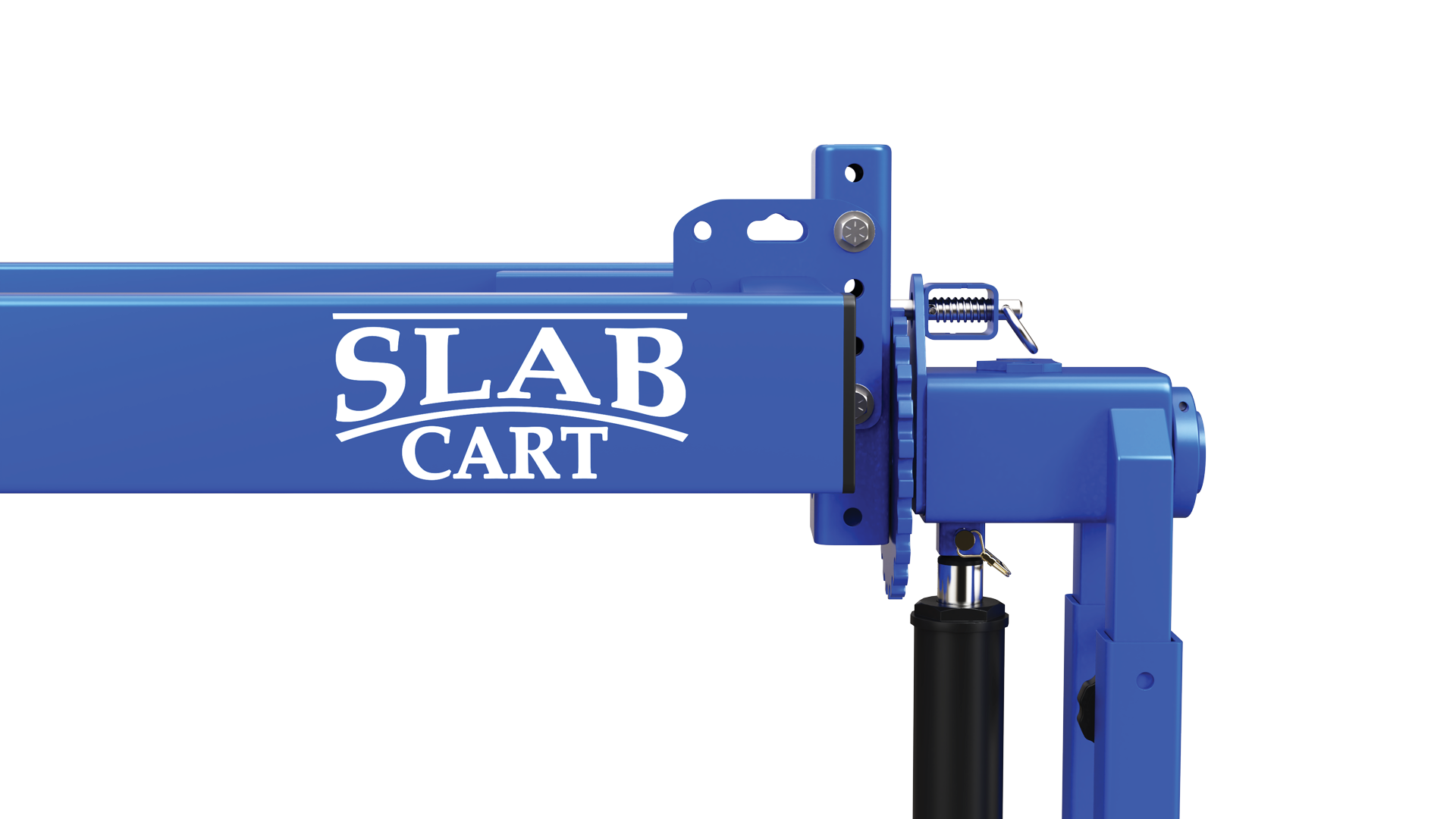

– Balanced Load Tilt Adjuster: Built in to our design design, the adjustable tilt axis point allows you to make adjustments to balance the weight of the slab load to minimize effort needed to tilt a workload.
– Locking Swivel Casters: – Six(6) Solid Rubber full swivel casters (Eight(8) w/ outriggers) allow more contact points for stability while rolling on uneven terrain and providing better weight distribution over softer surfaces while reducing the risk of damage to flooring. The Locking wheel feature for each wheel is ideal for securing position while transport/hauling.
Accessories:
-Grab Bar – For use with GRABO Vacuum Clamping Systems (no max qty)

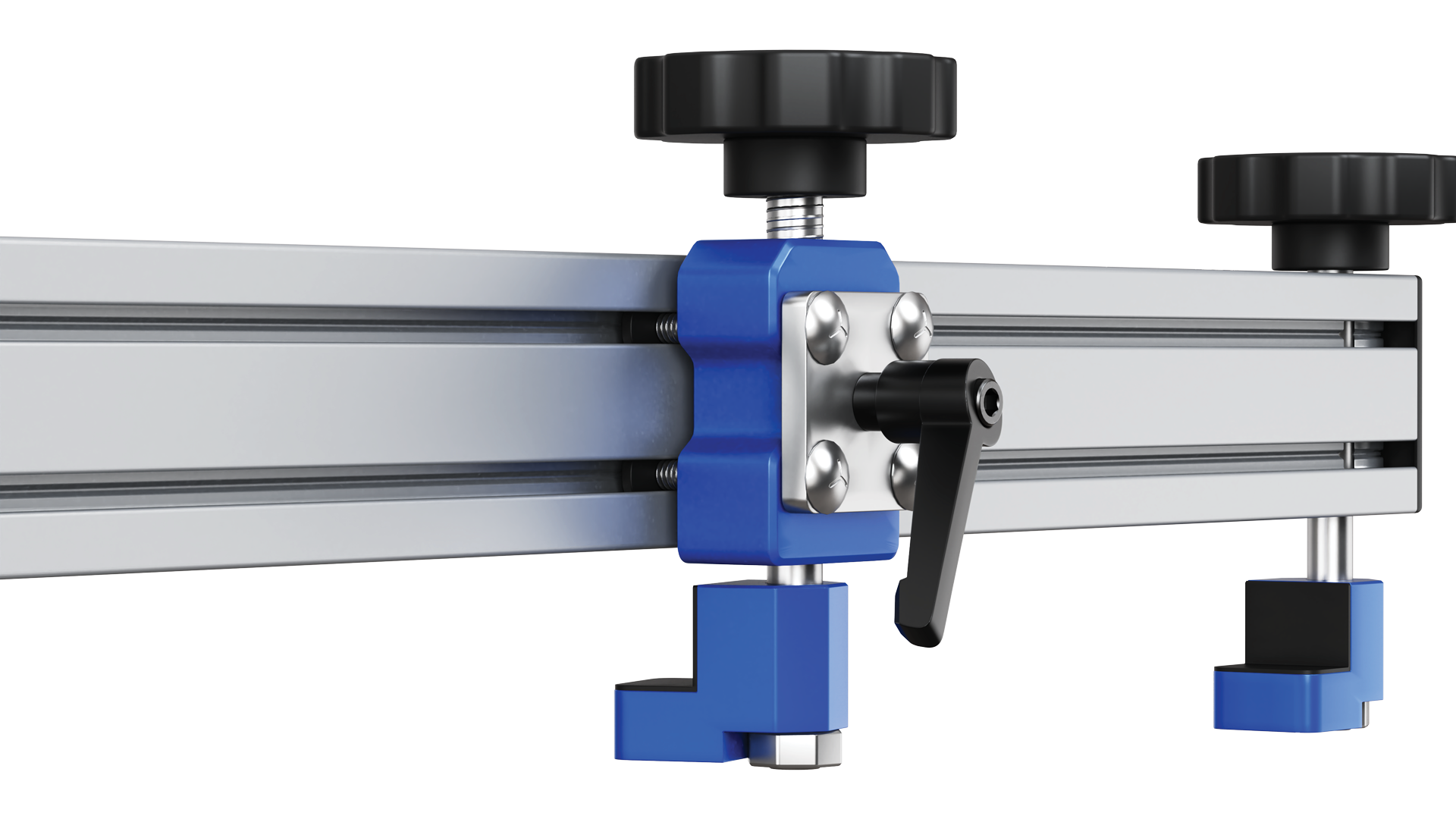

-Slide Clamps – For additional versatility (no max qty)

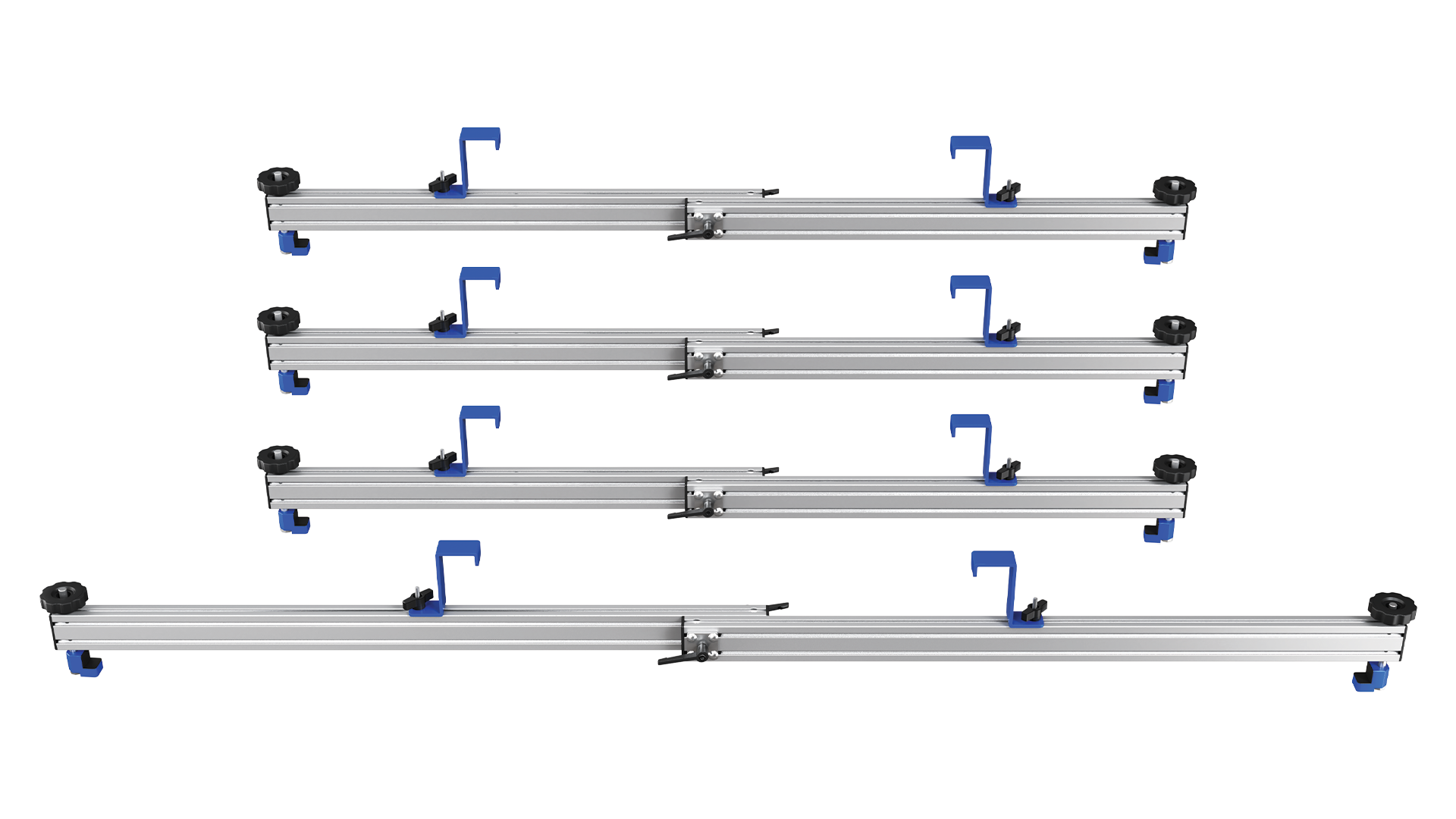

-82” Adjustable Span Cross Brace Assembly (no max qty)
-62” Adjustable Span Cross Brace Assembly (no max qty)
-Support Transfer Brace – Leg Assembly Positioner (1 or 2 units)
Upgrade options:
-Adjustable Balance Control Outriggers (sold as set of 2)
-Telescopic Extensions (1 or 2 units)

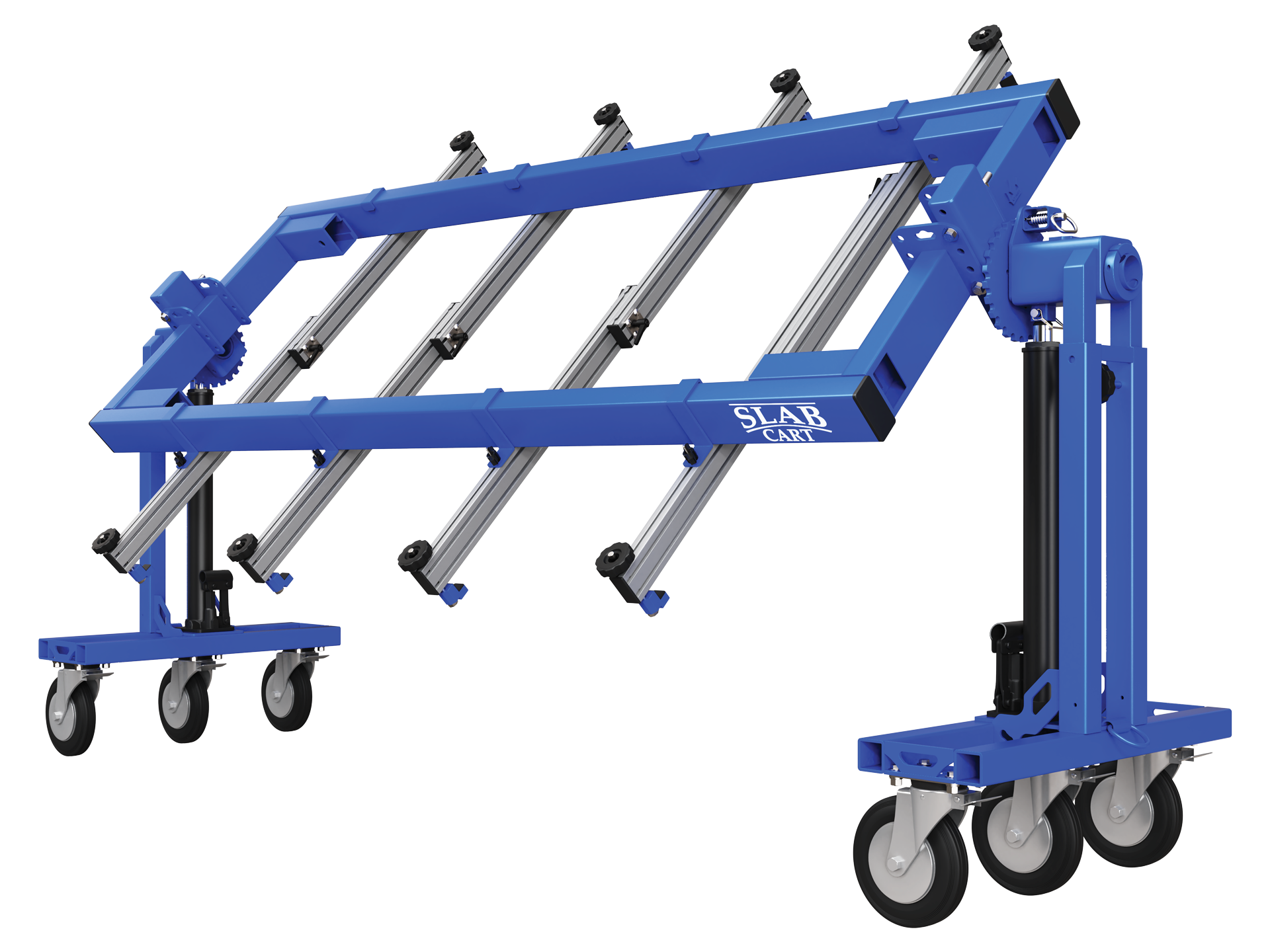

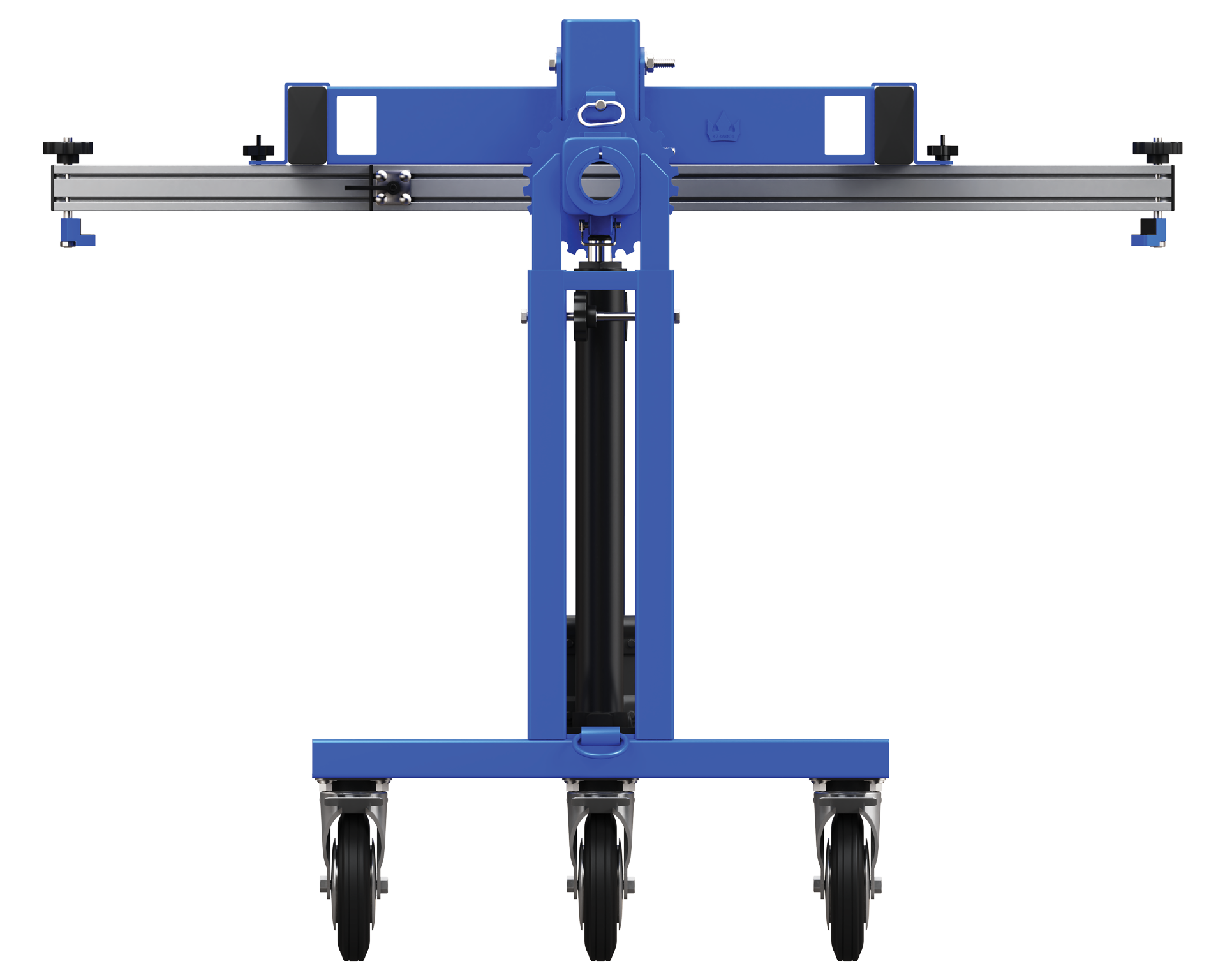

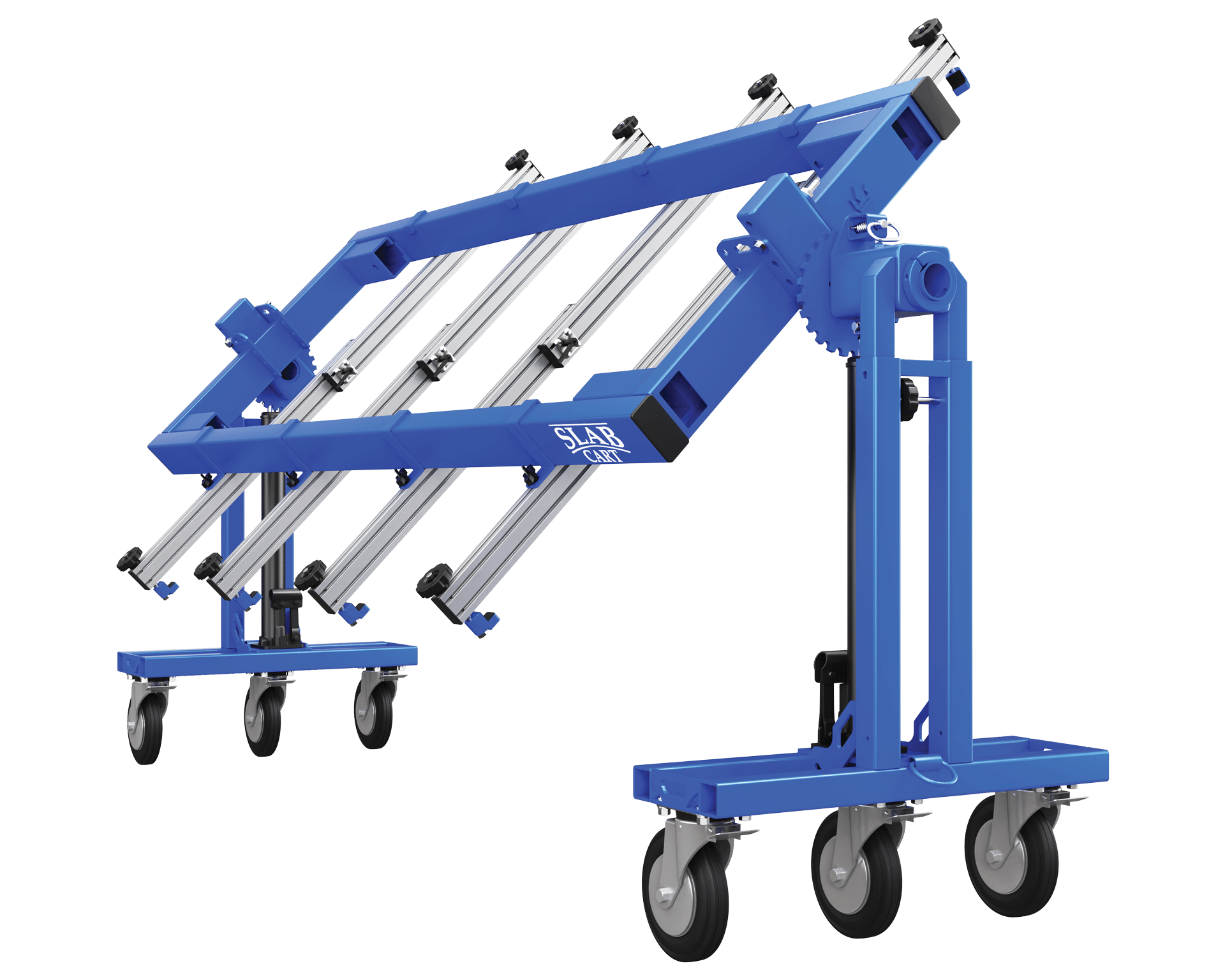

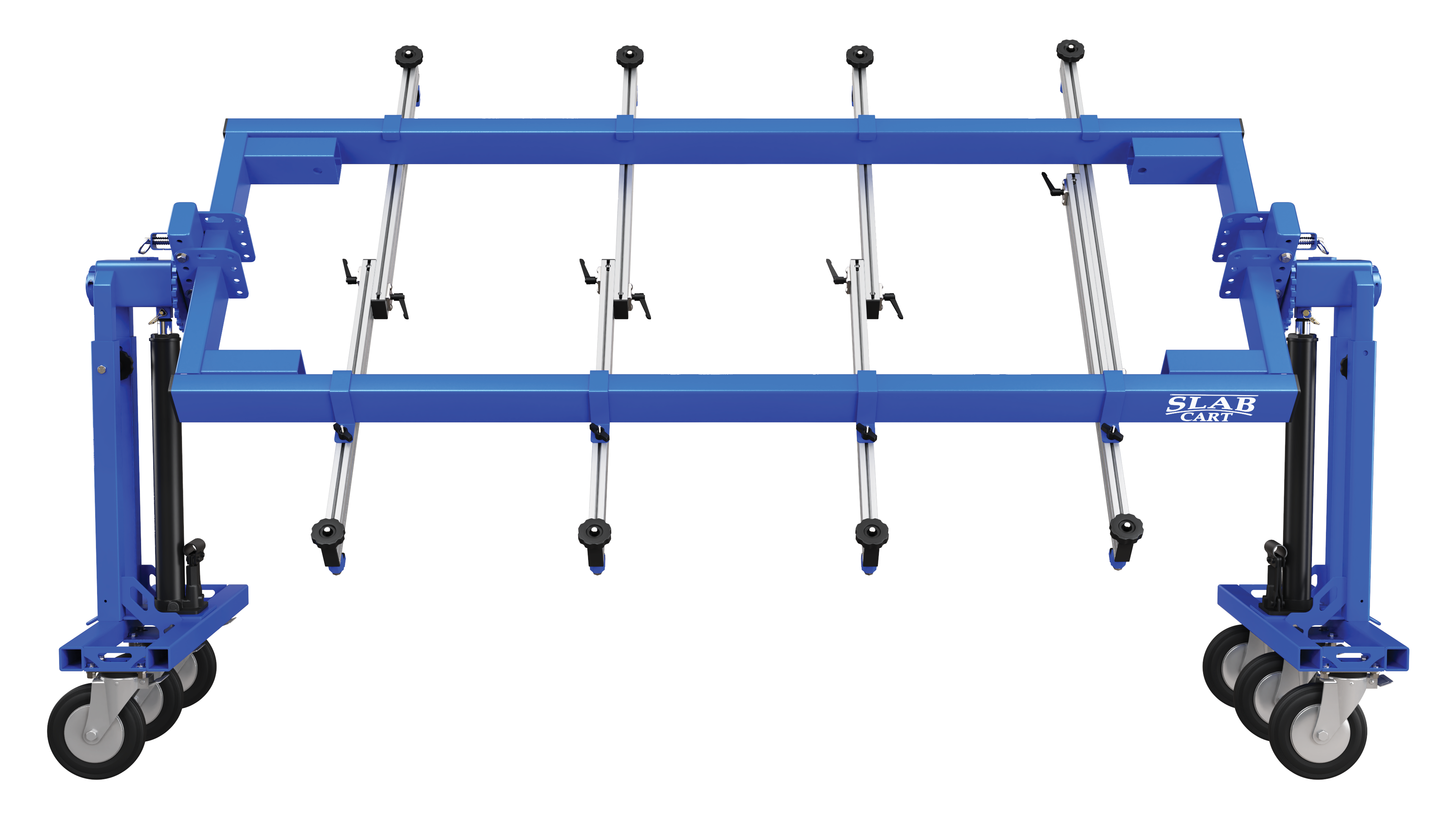

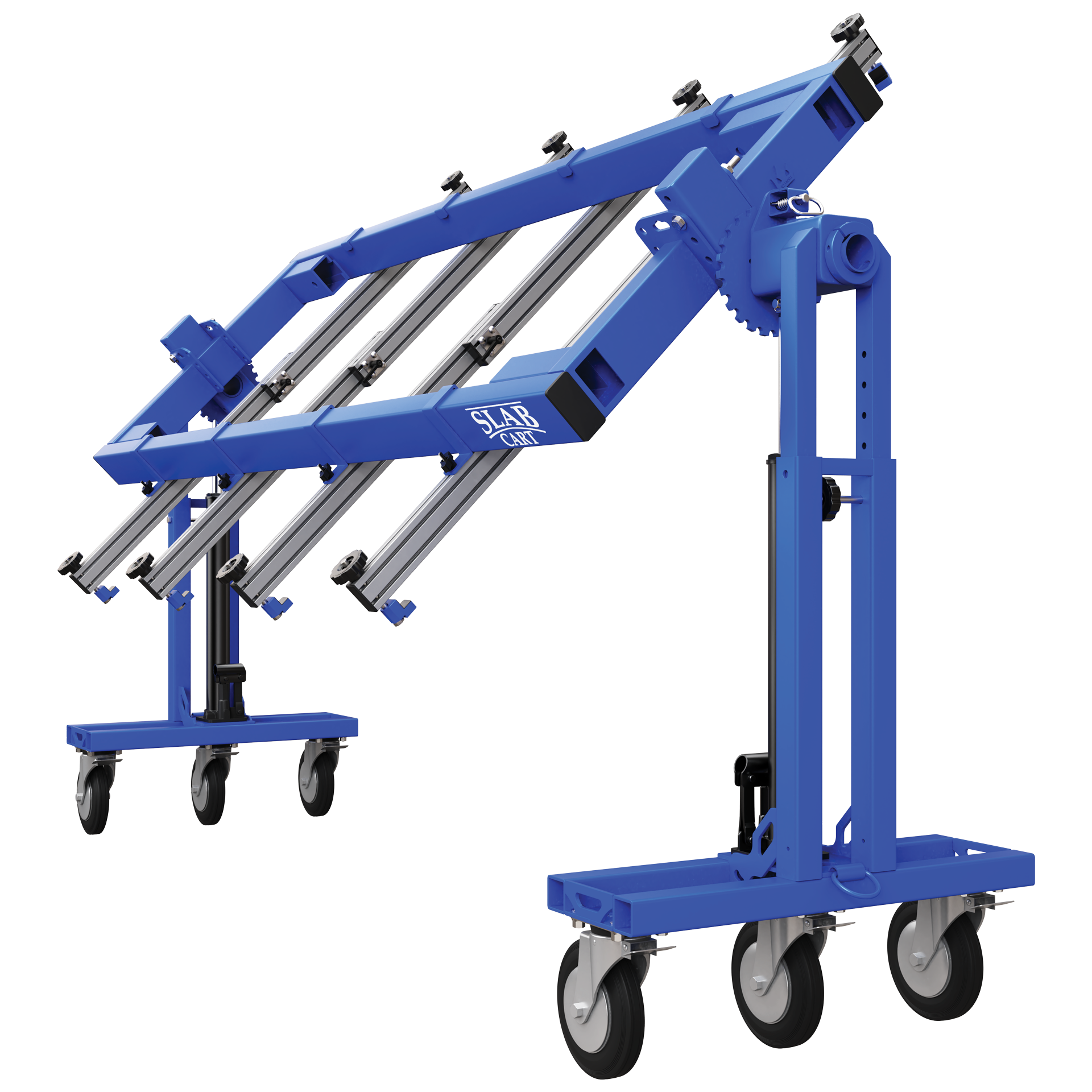

Our Baseline Product line still offers the industry leading 1600lb lifting capacity, but with hand pumped hydraulic lifters. Ideal for the cost-minded individual or small business looking to expand their capabilities as their business grows! Your Slab Cart ECO can grow with you. The smaller frame platform allows for handling of slabs up to 84” long and with the ability to upgrade with dual telescopic extensions that push the slab handling capacity up to 116”. The Power Lift package can also be added as a future upgrade if you’re looking for push-button convenience!
What’s Included:
- One(1) Standard Cart Frame with a Load capacity up to 1600lbs and 84”
- Two(2) Power Lift Leg assemblies w/ a total of six(6) solid rubber swivel locking casters
- Two(2) Adjustable Balance Axis Assemblies with full 360° Tilt and Position Locks
- One(1) 82” Adjustable Span Cross Brace Assembly
- One(3) 66” Adjustable Span Cross Brace Assemblies
- One(1) Slide Clamp
USD Original price was: $7,495.00.$6,495.00Current price is: $6,495.00.
USD Original price was: $7,495.00.$6,495.00Current price is: $6,495.00.
Due to High Demand, Carts typically ship within 1-2 Weeks.
Explore The Remarkable Innovation Behind The Slab Cart
Safe. Secure. Dependable.
ADJUSTABLE SIZE capacity
Adaptability

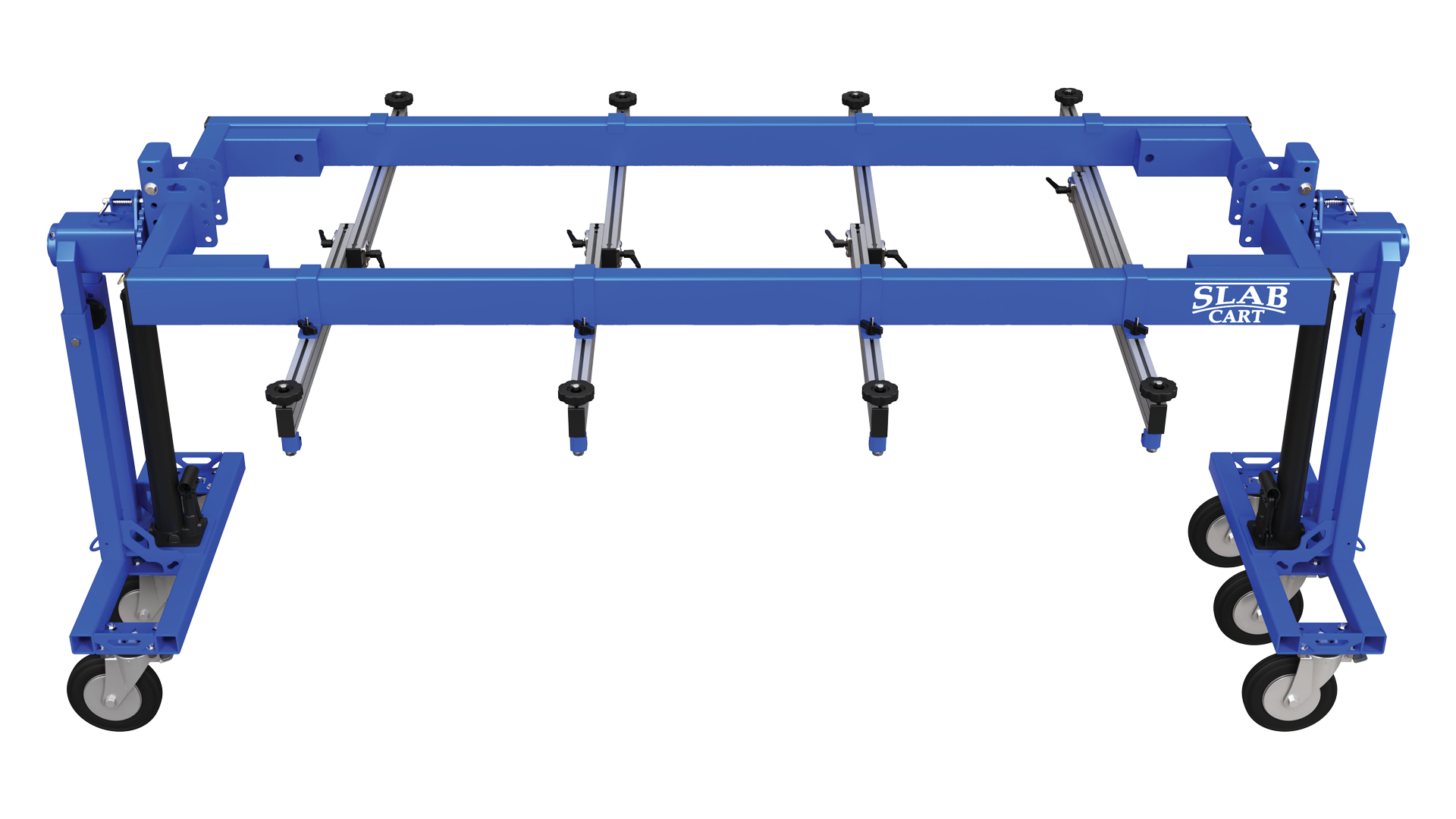

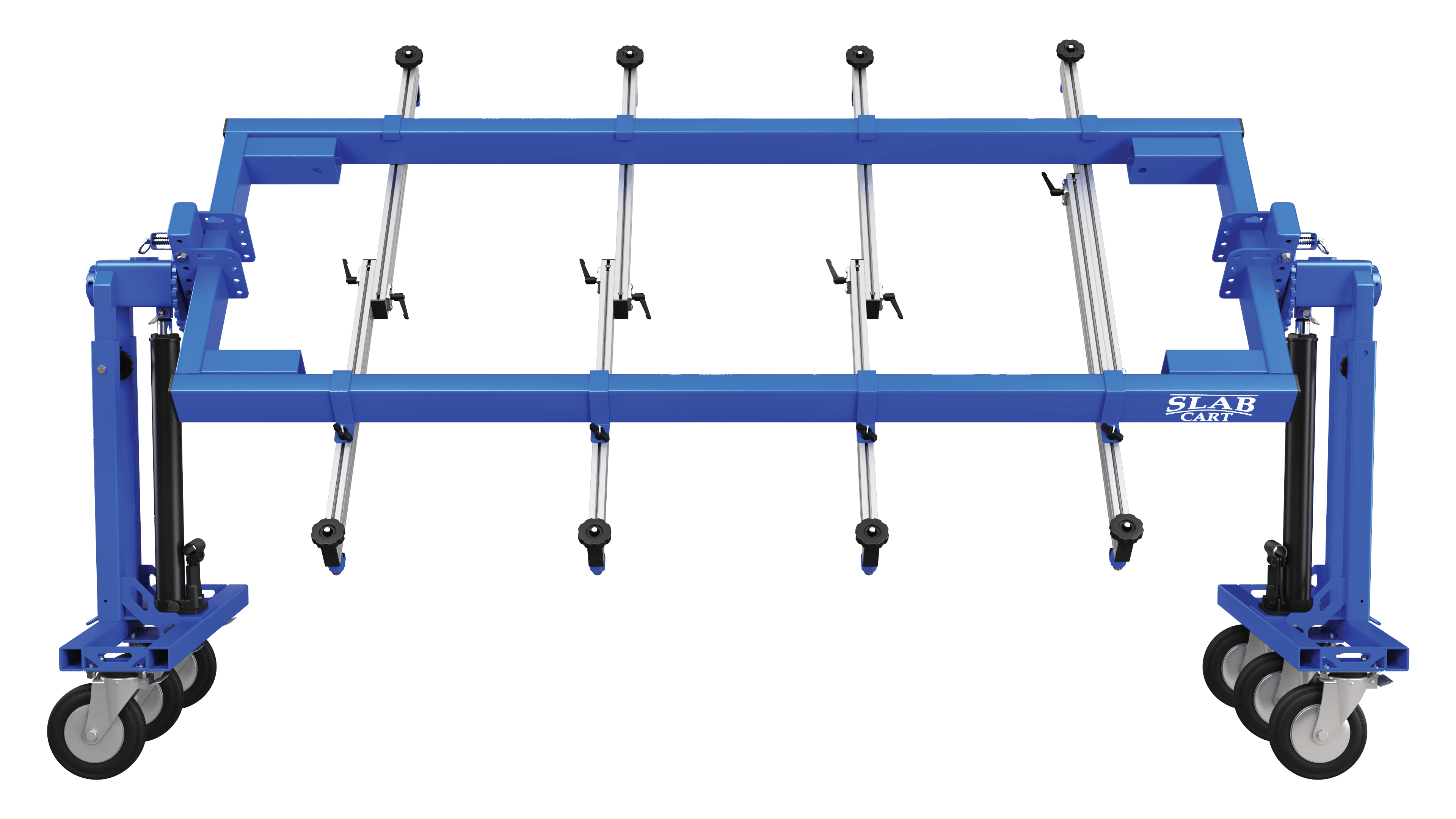

Slab Cart’s innovative cross-brace design allows the ability to position clamps at any position along the perimeter of your workload. Also, the unique clamping system allows for additional clamping points along the length of each cross brace. This allows for strategic placement and adequate support for the most fragile of slabs while ensuring the safety of your crew.
Maneuverability
With a design platform that provides unobstructed clearance between the wheels, Slab Cart can easily maneuver tight passages and obstacles while maintaining full balance and control. Also, the Independent lifting systems on each leg assembly allows for precision handling and added control while navigating inclines.
Stability
The ability for the rolling assemblies to act independently of each other allows heavy loads to easily traverse over imperfect and uneven surfaces while maintaining safe contact with ground. Also, with the weight distributed across six (6) wheels, the weight is better distributed to prevent damage to flooring. Optional-use outriggers can be inserted to provide increased stability and weight distribution during transport.
Read Real Customer Reviews
Honest Feedback from Satisfied Customers
How has a cart system like this not existed before!!? I used the Slab Cart to deliver an 800/b table top and was able to easily maneuver it through doorways and narrow passages. The ability to balance it made rotating the slab a breeze! I was able to move and set it in place without using my own muscle. It truly does ALL of the lifting!
The Slab Cart has completely changed the way I operate my shop. This one tool has more capability than I’ve discovered so far. Obviously it can be used for installations, but I’ve also used it for fabrication. This is an absolute game changer!
FAQ
What is the Size Capacity of the Slab Cart?
The Slab Cart PRO was designed to carry the largest stone slab produced to date, the Super Jumbo Slab (138”x79”). With an oversized capacity of 146"x82" and 1600lbs. The SlabCart LTE with the telescopic extensions can carry loads as large as 122”x82”. The SlabCart ECO has a carry capacity length of 90", but can be extended to 122" with the upgraded purchase of a set of Extensions.
What is the Weight Capacity of the Slab Cart?
The SlabCart PRO, LTE, and ECO were all both designed to safely transport slab loads weighing up to 1600lbs.

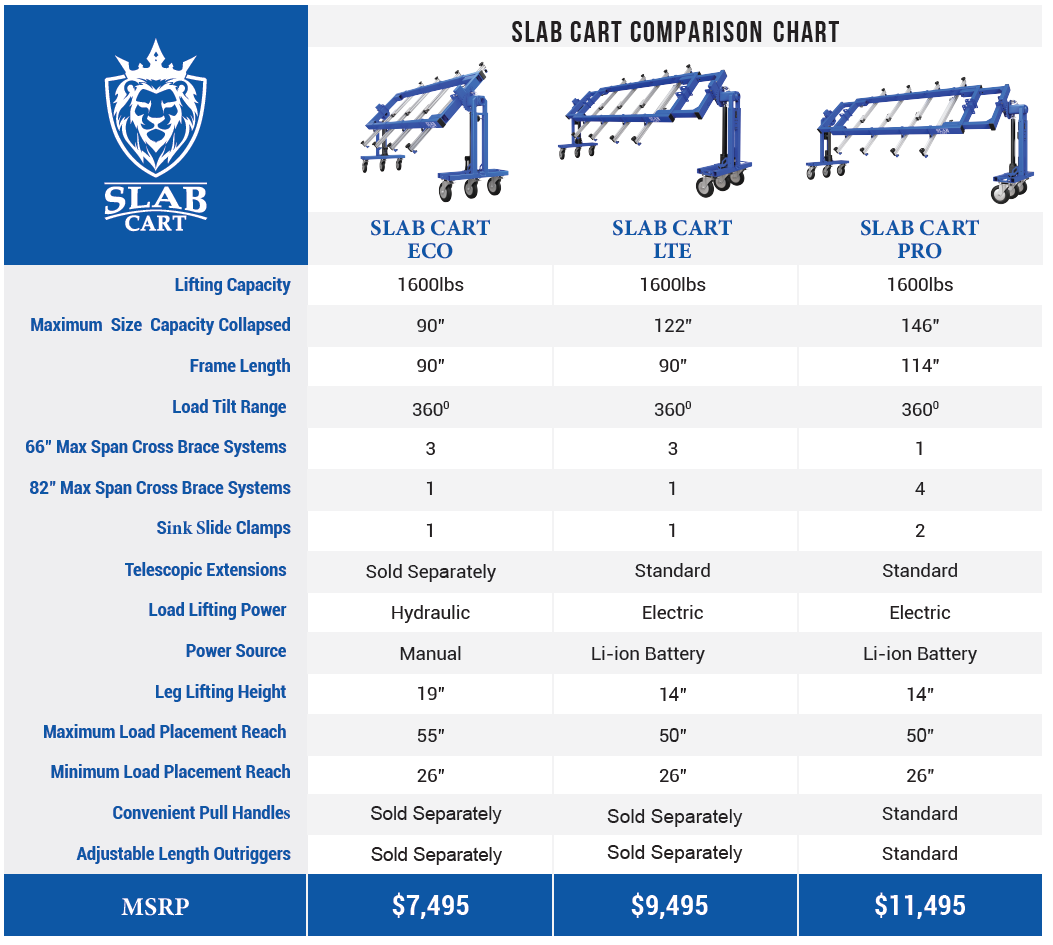

What is the difference between the SlabCart PRO and the Slab Cart LTE & ECO?
Primarily the Length. The rated Load Weight Capacity and all of the features are identical. However, the frame of the Slab Cart PRO allows for an additional 24” of carrying capacity over its smaller framed counterparts.
SlabCart ECO is a "No Frills" version of the SlabCart LTE which comes with hydraulic manual lifters and optional accessories as options for future upgrades.
What are the Extensions?
The Extensions are a telescopic accessory that can be either removed or added to either or both ends of any SlabCart model. The Extensions are telescopic and can adjust in length to better adapt to longer loads without making the Slab Cart unnecessarily long for smaller loads. The Extensions come standard on the SlabCart PRO and LTE while are an optional accessory available for purchase for the SlabCart ECO model.
What capacity do the Extensions add to the Slab Cart?
Each Extension adds up to 16” in adjustable length. Two(2) Extensions add up to 32” it total length to the base length of both the Slab Cart and Slab Cart XL.
With two(2) Extensions:
122" - Slab Cart ECO & LTE
146" - Slab Cart PRO
Why does the SlabCart ECO come with hydraulic lifters instead of electric?
Primarily cost savings. The Hydraulic version uses a manual lifting Jack as an economical option which utilizes a pump handle to lift and lower loads. The Hydraulic option also offers a higher lifting range allowing loads to be lifted about 5” higher which may be handy for clearing work site obstacles.
The Electric lifting option utilizes a rechargeable 12V Lithium ion battery and is a simple push button design and is available for purchase as a future upgrade option.
Can I upgrade my SlabCart ECO to Electric Lift in the future?
Yes. An upgrade accessory is available to convert your Hydraulic SlabCart EOC to an Electric Lift. The upgrade kit is a simple swap and utilizes basic tools to install. Call for info and pricing.
What are the adjustable stabilizers or "outriggers"?
Two primary functions:
The SlabCart was designed to go through door openings as narrow as 30” while carrying the load vertically, or near vertical, during transport. We understand that not all loads may be balanced when the load is rotated horizontally. The stabilizers allow for a larger rolling footprint for off-balanced loads, providing more stability. The Stabilizers can be adjusted in length or removed entirely during transport while under full load.
The other feature is to provide an additional point of contact with the ground allowing for more weight distribution across an extra set of wheels. This feature comes in handy when rolling over softer ground or flooring to prevent damage due heavier loads.
